BOSS · Effects & Pedals

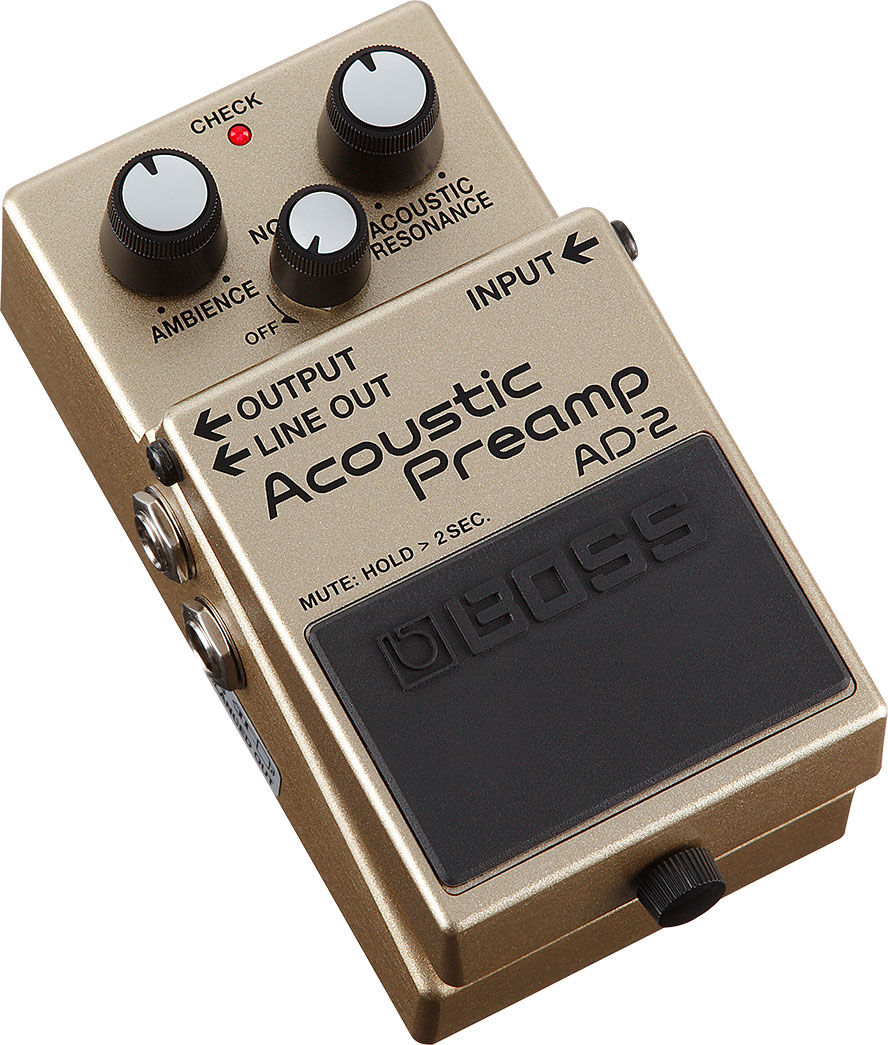

BOSS AD-2 Acoustic Preamp
AD-2
Shape your acoustic-electric sound for an amplifier or PA. Acoustic Resonance adds body, Ambience supplies reverb, and the notch filter helps reduce feedback. Separate standard and balanced outputs support different live setups.
Product details
- Brand
- BOSS
- Model
- AD-2
- Condition
- New
- Nominal Input Level
- -20 dBu
- Input Impedance
- 10 M ohms
- Nominal Output Level
- OUTPUT jack: -20 dBu LINE OUT jack: -20 dBu
- Output Impedance
- OUTPUT jack: 1 k ohm LINE OUT jack: 600 ohms
- Recommended Load Impedance
- OUTPUT jack: 10 k ohms or greater LINE OUT jack: 600 ohms or greater
- Bypass
- Buffered bypass
- Controls
- Pedal switch ACOUSTIC RESONANCE knob AMBIENCE knob NOTCH knob
- Indicator
- CHECK indicator (Serves also as battery check indicator)
- Connectors

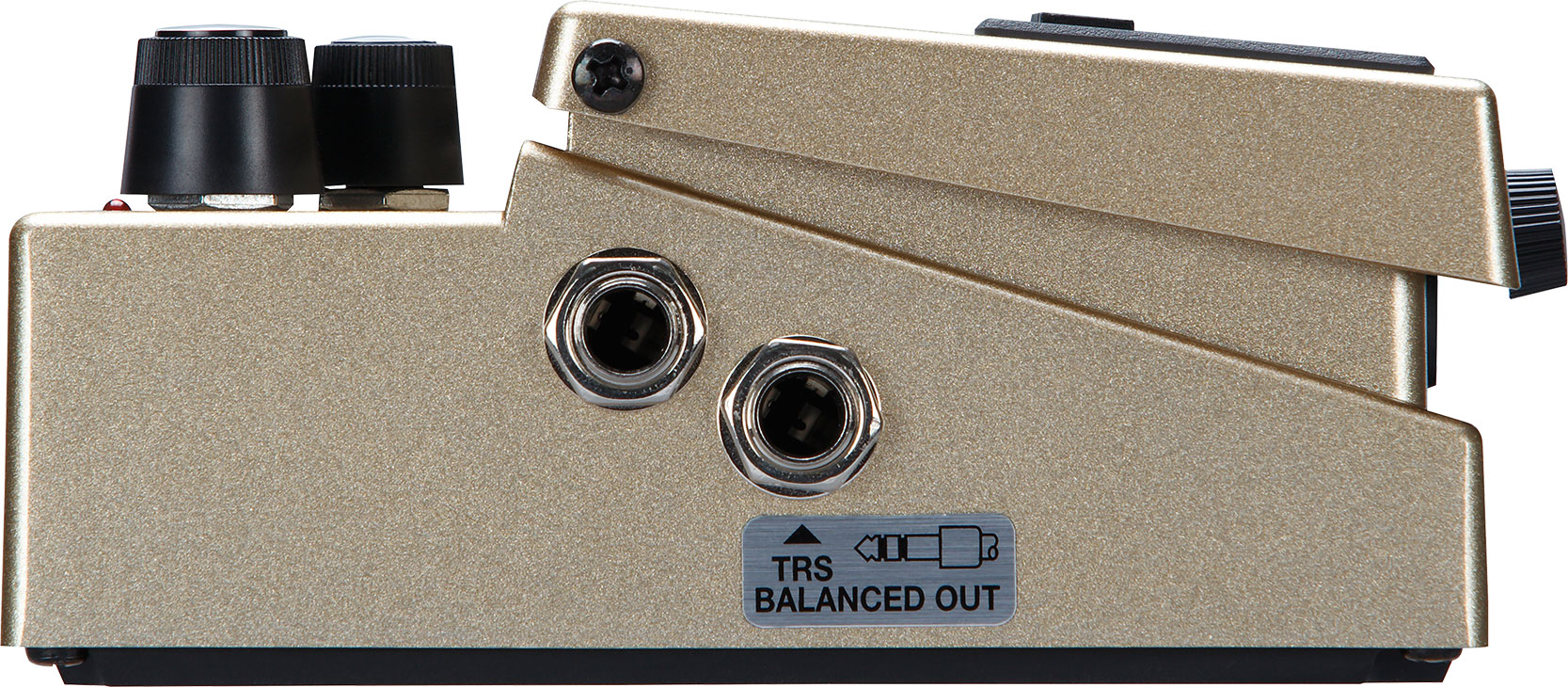

- INPUT jack: 1/4-inch phone type OUTPUT jack: 1/4-inch phone type LINE OUT jack: 1/4-inch TRS phone type DC IN jack
- Power Supply
- Alkaline battery (9V, 6LR61) AC adaptor (sold separately)
- Current Draw
- 65 mA
- Expected battery life under continuous use
- Alkaline: Approx. 5 hours *These figures will vary depending on the actual conditions of use.
- Accessories
- Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information") Alkaline battery (9V, 6LR61)
- Option (sold separately)
- AC adaptor (PSA series)
- Width
- 73 mm 2-7/8 inches
- Depth
- 129 mm 5-1/8 inches
- Height
- 59 mm 2-3/8 inches
- Weight (including battery)
- 420 g 15 oz
