BOSS · Effects & Pedals

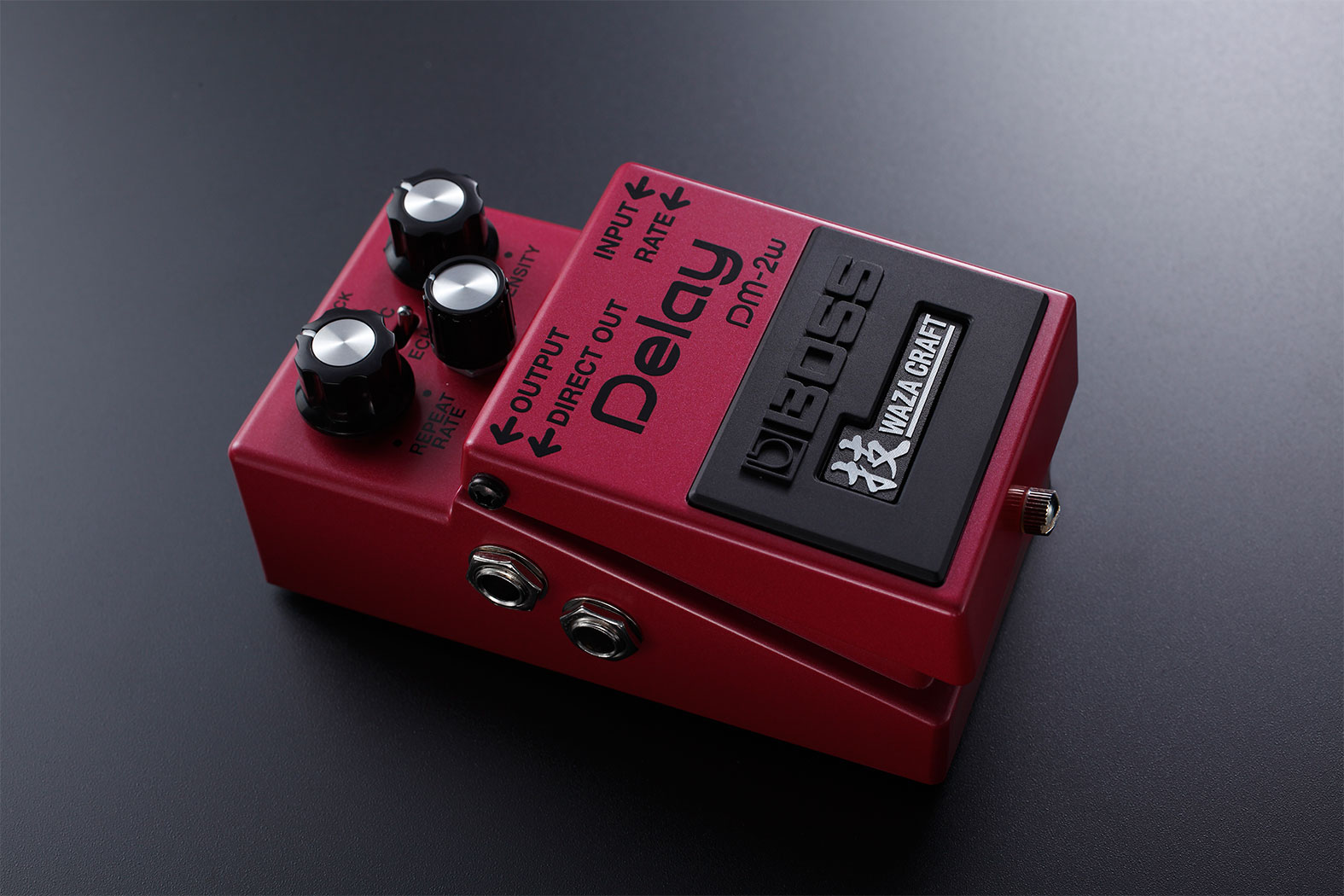

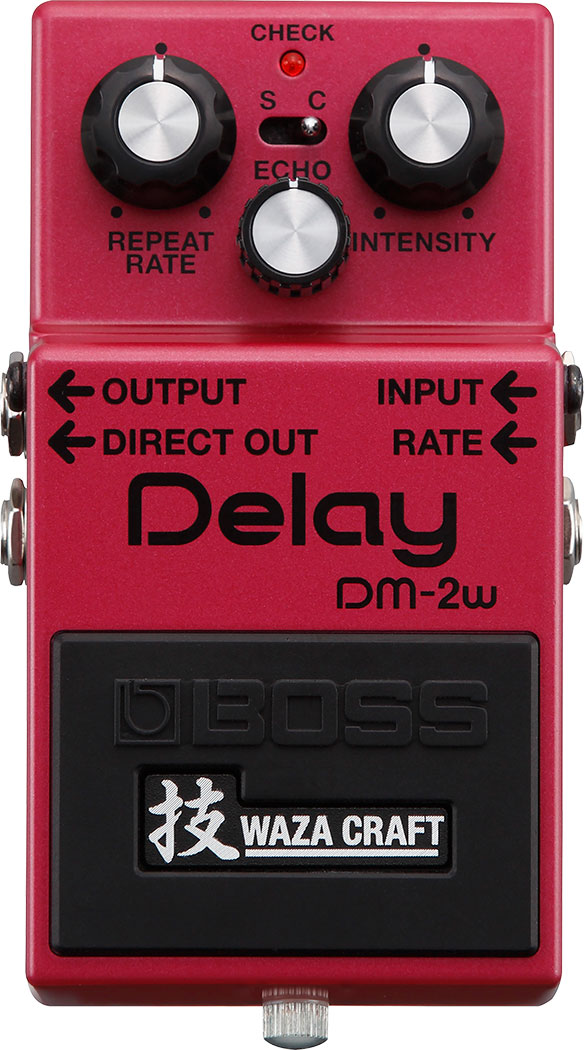

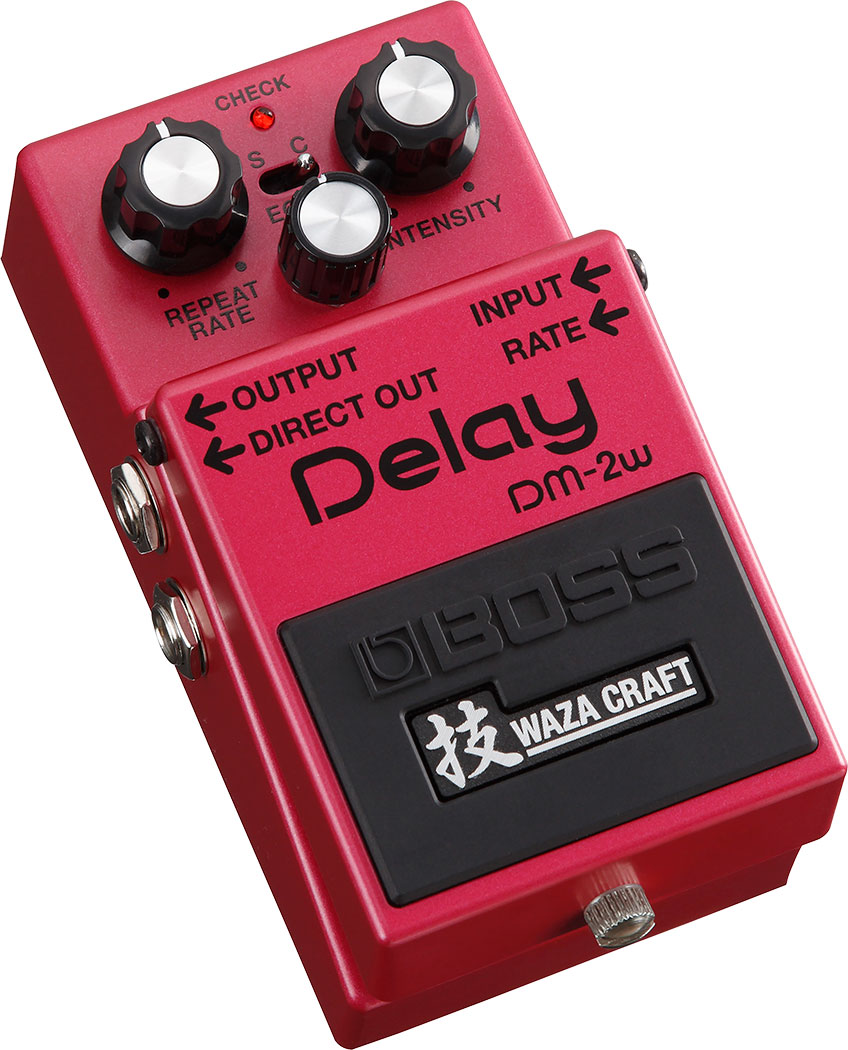

BOSS DM-2W Delay
DM-2W
A Waza Craft analog delay with Standard and Custom modes. Standard mode recreates the shorter DM-2 delay range; Custom mode extends the delay time. An optional expression pedal can control repeat rate.
Product details
- Brand
- BOSS
- Model
- DM-2W
- Condition
- New
- Nominal Input Level
- -20 dBu
- Input Impedance
- 1 M ohm
- Nominal Output Level
- -20 dBu
- Output Impedance
- 1 k ohm
- Recommended Load Impedance
- 10 k ohms or greater
- Delay Time
- Standard Mode: 20 ms to 300 ms Custom Mode: 40 ms to 800 ms
- Controls
- Pedal switch REPEAT RATE knob INTENSITY knob ECHO knob Mode switch
- Indicator
- CHECK indicator (Serves also as battery check indicator)
- Connectors
- INPUT jack: 1/4-inch phone type OUTPUT jack: 1/4-inch phone type DIRECT OUT jack: 1/4-inch phone type RATE jack: 1/4-inch TRS phone type DC IN jack
- Power Supply
- Alkaline battery (9 V, 6LR61) or Carbon-zinc battery (9 V, 6F22) AC adaptor (PSA series: sold separately)
- Current Draw
- 35 mA
- Expected battery life under continuous use (These figures will vary depending on the actual conditions of use.)
- Alkaline: Approx. 15 hours Carbon: Approx. 5 hours
- Accessories
- Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information") Alkaline battery (9 V, 6LR61)
- Options (sold separately)
- AC adaptor: PSA series Expression pedal: Roland EV-5
- Width
- 73 mm 2-7/8 inches
- Depth
- 129 mm 5-1/8 inches
- Height
- 59 mm 2-3/8 inches
- Weight
- 460 g 1 lb 1 oz
