BOSS · Effects & Pedals

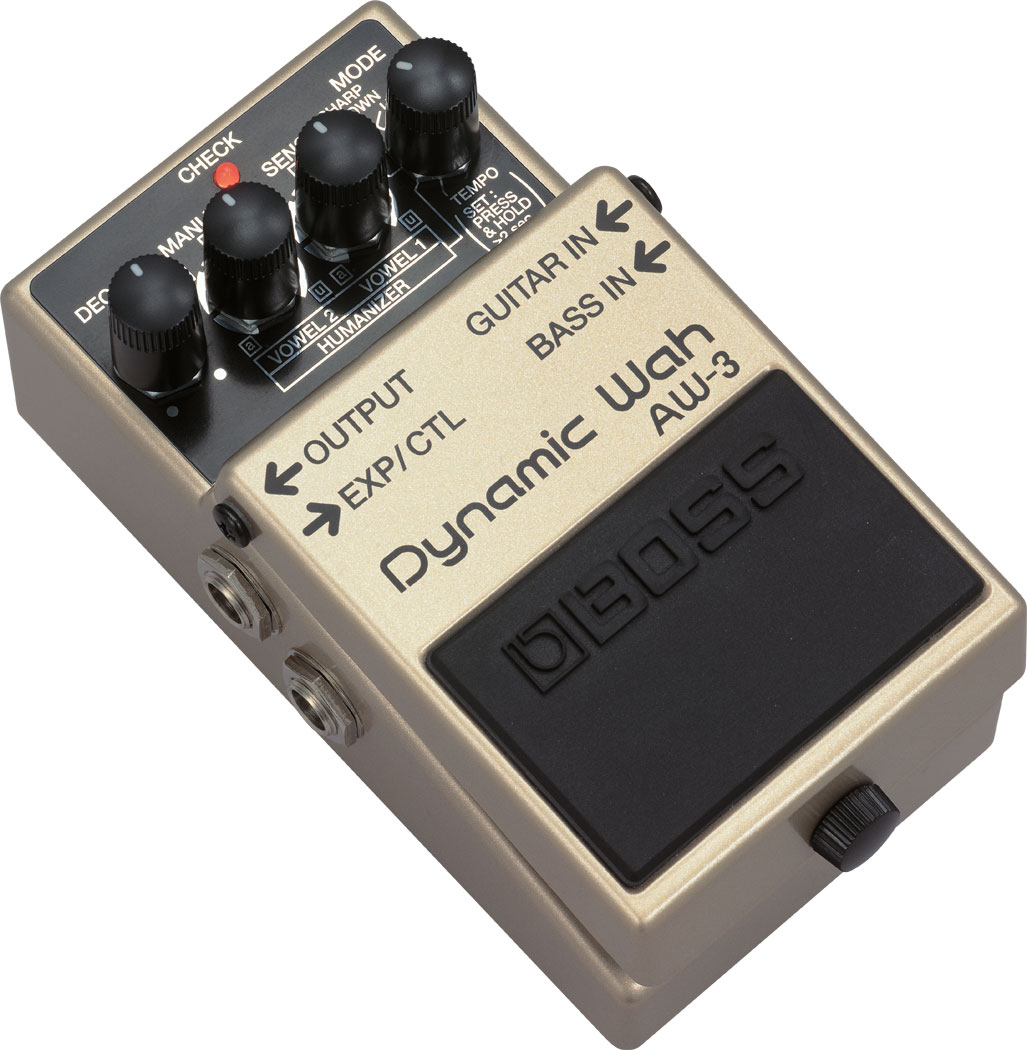

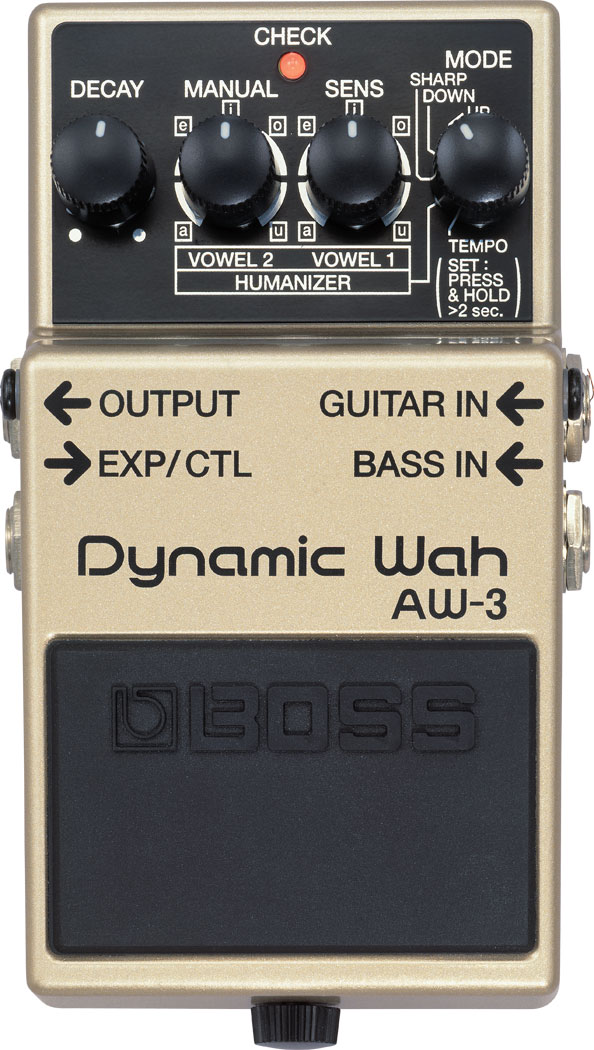

BOSS AW-3 Dynamic Wah
AW-3
Create touch-responsive wah effects for guitar or bass, including vowel-like Humanizer sounds. Dedicated guitar and bass inputs and multiple modes support varied playing styles. An optional expression pedal provides manual control.
Product details
- Brand
- BOSS
- Model
- AW-3
- Condition
- New
- Nominal Input Level
- -20 dBu
- Input Impedance
- 1 M ohm
- Nominal Output Level
- -20 dBu
- Output Impedance
- 1 k ohm
- Recommended Load Impedance
- 10 k ohms or greater
- Bypass
- Buffered bypass
- Controls
- MODE knob SENS knob MANUAL knob DECAY knob Pedal switch
- Indicator
- CHECK indicator (Used for indication of check battery)
- Connectors
- GUITAR IN jack: 1/4-inch phone type BASS IN jack: 1/4-inch phone type OUTPUT jack: 1/4-inch phone type EXP/CTL jack: 1/4-inch phone type DC IN jack
- Power Supply
- Alkaline battery (9 V, 6LR61) AC adaptor (PSA series: sold separately)
- Current Draw
- 50 mA
- Expected battery life under continuous use
- Alkaline: Approx. 8 hours *These figures will vary depending on the actual conditions of use.
- Accessories
- Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information") Alkaline battery (9 V, 6LR61)
- Options (sold separately)
- AC adaptor: PSA series Expression Pedal: EV-30/FV-500H/FV-500L, Roland EV-5 Footswitch(momentary-type): FS-5U/FS-6/FS-7
- Width
- 73 mm 2-7/8 inches
- Depth
- 129 mm 5-1/8 inches
- Height
- 59 mm 2-3/8 inches
- Weight (including battery)
- 430 g 1 lb
