BOSS · Effects & Pedals

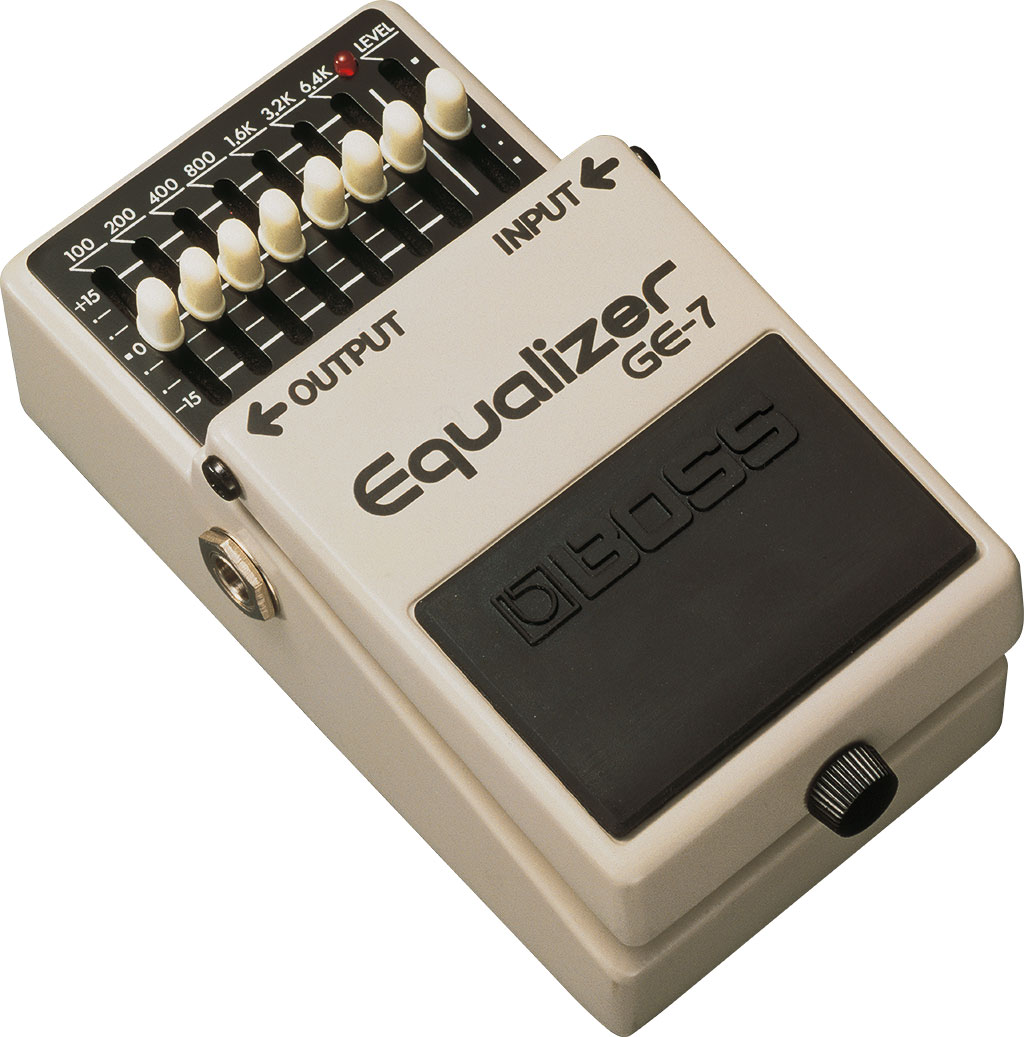

BOSS GE-7 Equalizer
GE-7
Adjust seven frequency bands from 100 Hz to 6.4 kHz to shape guitar tone. Each band offers up to 15 dB of boost or cut, with a separate level control for matching volume or adding a boost.
Product details
- Brand
- BOSS
- Model
- GE-7
- Condition
- New
- Nominal Input Level
- -20 dBu
- Input Impedance
- 1 M ohm
- Nominal Output Level
- -20 dBu
- Output Impedance
- 1 k ohm
- Recommended Load Impedance
- 10 k ohm or greater
- Bypass
- Buffered bypass
- Controls
- Level Control knob Equalizer Control knob 100, 200, 400, 800, 1.6 k, 3.2 k, 6.4 kHz Pedal switch
- Indicator
- CHECK indicator (Serves also as battery check indicator)
- Connectors
- INPUT jack: 1/4-inch phone type OUTPUT jack: 1/4-inch phone type DC IN jack
- Power Supply
- Carbon-zinc battery (9 V, 6F22) Alkaline battery (9 V, 6LR61) AC adaptor (PSA series: sold separately)
- Current Draw
- 30 mA
- Expected battery life under continuous use
- Carbon: Approx. 9 hours Alkaline: Approx. 19.5 hours *These figures will vary depending on the actual conditions of use.
- Accessories
- Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information") Carbon-zinc battery (9 V, 6F22)
- Options (sold separately)
- AC adaptor: PSA series
- Width
- 73 mm 2-7/8 inches
- Depth
- 129 mm 5-1/8 inches
- Height
- 59 mm 2-3/8 inches
- Weight (including battery)
- 400 g 15 oz
