BOSS · Effects & Pedals

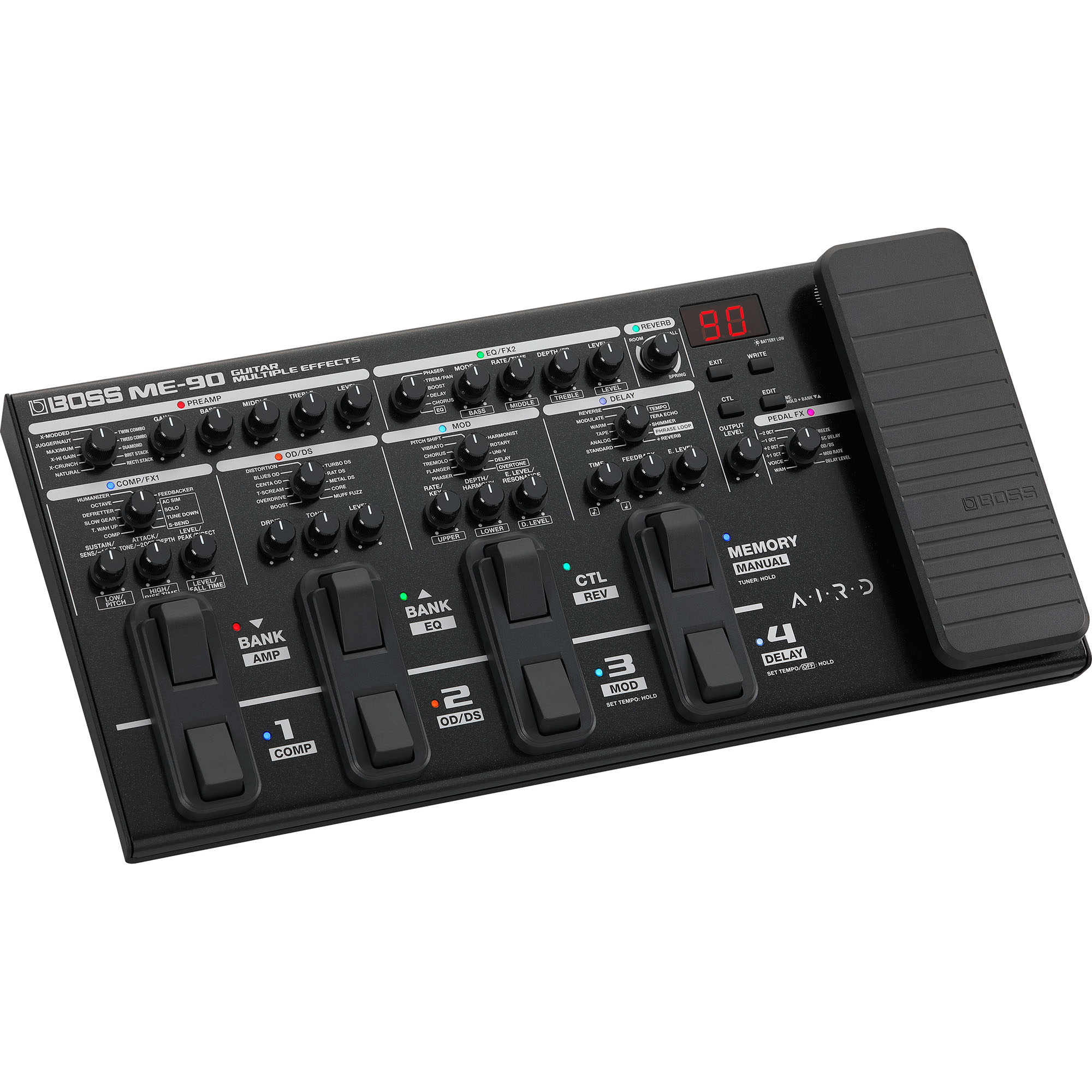

BOSS ME-90 Guitar Multiple Effects
ME-90
Build guitar sounds with hands-on knobs, AIRD preamps, and a broad selection of effects. Switch between manual pedal-style operation and stored memories. A send/return loop and USB connection support integration with other pedals and computer recording.
Product details
- Brand
- BOSS
- Model
- ME-90
- Condition
- New
- Sampling Frequency
- 48 kHz
- AD Conversion
- 24 bits + AF method AF method (Adaptive Focus method) This is a proprietary method from Roland & BOSS that vastly improves the signal-to-noise (SN) ratio of the AD and DA converters.
- DA Conversion
- 32 bits
- Processing
- 32-bit floating point
- Effects
- 97 Types
- Memories
- 36 (User) + 36 (Preset)
- Phrase Loop
- 38 sec. (MONO)
- Tuner Internal Detection
- +/-0.1 cent
- Nominal Input Level
- INPUT: -10 dBu RETURN: -10 dBu
- Maximum Input Level
- INPUT: +7 dBu RETURN: +7 dBu
- Input Impedance
- INPUT: 1 M ohm RETURN: 1 M ohm
- Nominal Output Level
- OUTPUT (L/MONO, R): -10 dBu PHONES: -10 dBu SEND: -10 dBu
- Output Impedance
- OUTPUT (L/MONO, R): 1 k ohm PHONES: 44 ohms SEND: 1 k ohm
- Recommended Load Impedance
- OUTPUT (L/MONO, R): 10 k ohms or greater PHONES: 44 ohms or greater SEND: 10 k ohms or greater
- Controls
- BANK DOWN/AMP switch, BANK UP/EQ switch, CTL/REV switch, MEMORY/MANUAL switch, 1/COMP switch, 2/OD/DS switch, 3/MOD switch, 4/DELAY switch, PEDAL FX switch, Gt. AMP/LINE switch, POWER switch, EXIT button, WRITE button, CTL button, EDIT button, PREAMP TYPE knob, GAIN knob, BASS knob, MIDDLE knob, TREBLE knob, LEVEL knob, REVERB knob, COMP/FX1 TYPE knob, SUSTAIN/SENS/-1OCT knob, ATTACK/TONE/-2OCT/DEPTH knob, LEVEL/PEAK/DIRECT knob, OD/DS TYPE knob, DRIVE knob, TONE knob, LEVEL knob, MOD TYPE knob, RATE/KEY knob, DEPTH/HARMONY knob, E.LEVEL/RESONANCE knob, DELAY TYPE knob, TIME knob, FEEDBACK knob, E.LEVEL knob, OUTPUT LEVEL knob, PEDAL FX TYPE knob, PEDAL FX pedal
- Display
- 7 segments, 2 characters (LED)

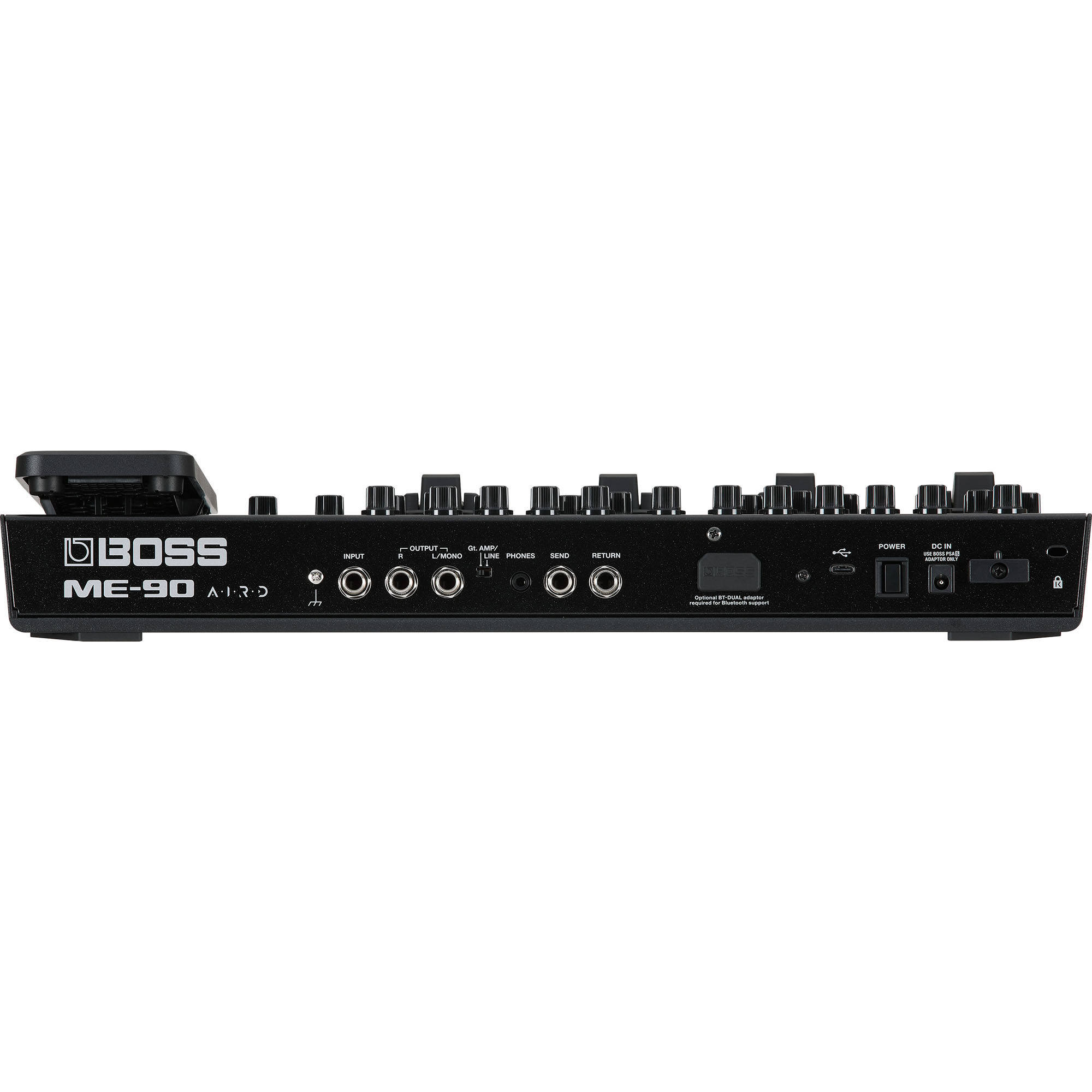

- Connectors
- INPUT jack, OUTPUT (L/MONO, R) jacks, SEND jack, RETURN jack: 1/4-inch phone type PHONES jack: Stereo miniature phone type USB COMPUTER port: USB Type-C(R) Bluetooth ADAPTOR connector: Dedicated connector DC IN jack
- Power Supply
- Alkaline battery (AA, LR6) x 4 or AC adaptor
- Current Draw
- 190 mA
- Expected battery life under continuous use
- Alkaline battery: Approximately 6.5 hours * This can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use.
- Accessories
- STARTUP GUIDE Alkaline battery (AA, LR6) x 4 Leaflet "USING THE UNIT SAFELY"
- Options (sold separately)
- AC adaptor: PSA-S series Bluetooth(R) Audio MIDI Dual Adaptor: BT-DUAL Carrying Case: CB-BM-M
- Width
- 443 mm 17-1/2 inches
- Depth
- 220 mm 8-11/16 inches
- Height
- 67 mm 2-11/16 inches
- Maximum Height
- 93 mm 3-11/16 inches
- Weight(including battery)
- 2.9 kg 6 lb 7 oz
Official BOSS product information
