Manufacturer product photography.
BOSS · Effects & Pedals

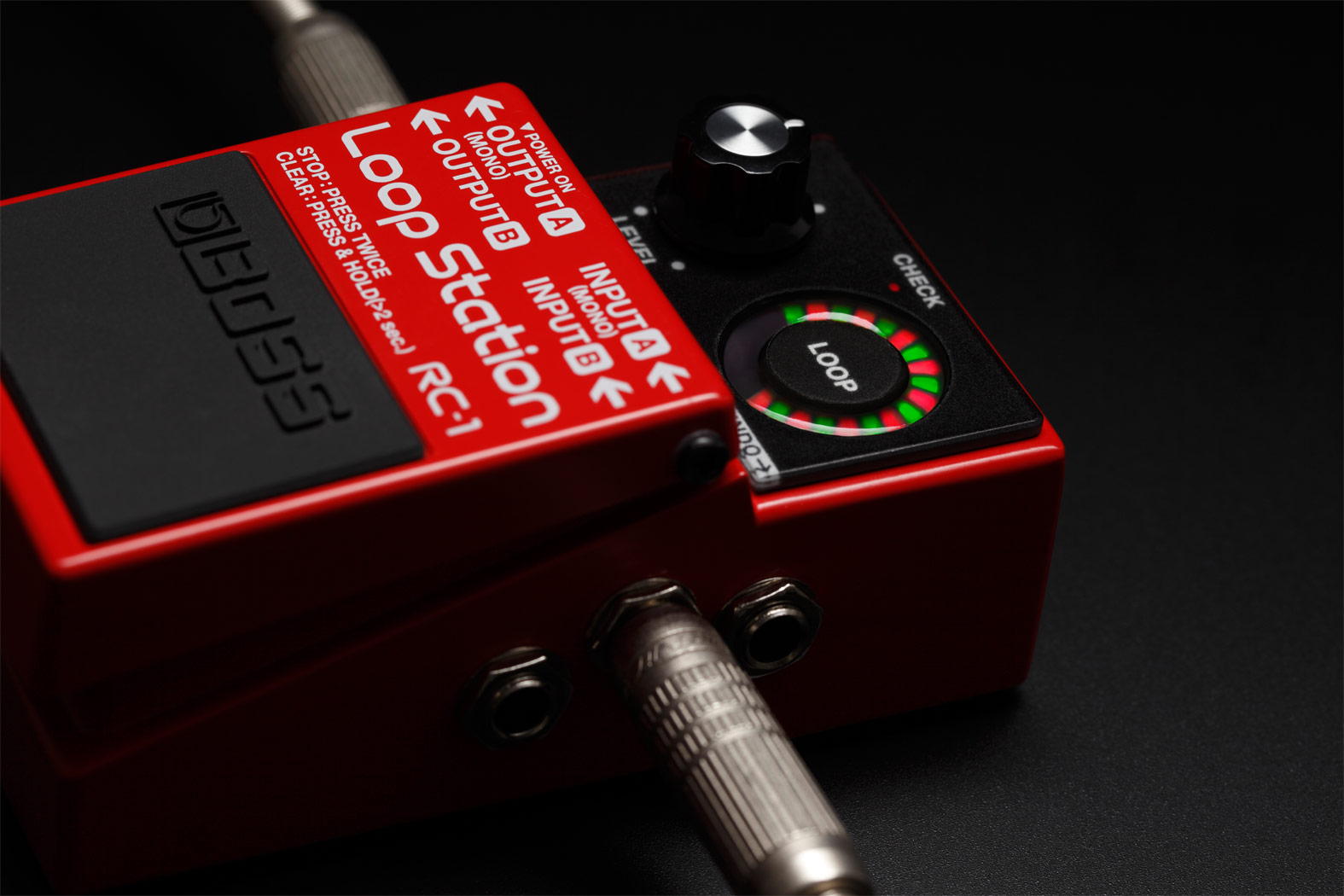

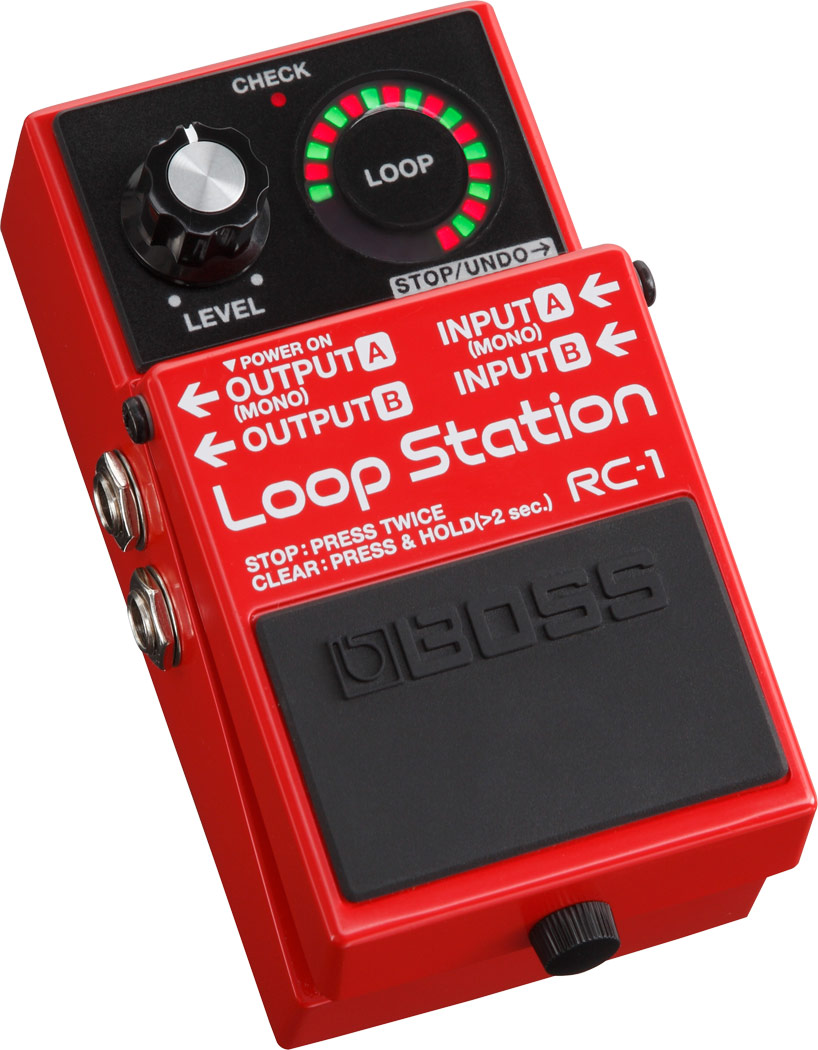

BOSS RC-1 Loop Station
RC-1
Record, overdub, and play back loops with a straightforward single-pedal layout. The circular status display helps track loop operation, while stereo inputs and outputs support a range of instruments and setups.
Product details
- Brand
- BOSS
- Model
- RC-1
- Condition
- New
- Nominal Input Level
- -20 dBu
- Input Impedance
- 1 M ohm
- Nominal Output Level
- -20 dBu
- Output Impedance
- 1 k ohm
- Recommended Load Impedance
- 10 k ohms or greater
- Maximum Recording Time
- Approximately 12 minutes
- Controls
- Pedal switch LEVEL knob
- Indicators
- CHECK indicator LOOP indicator
- Connectors
- INPUT A (MONO) jack: 1/4-inch phone type INPUT B jack: 1/4-inch phone type OUTPUT A (MONO) jack: 1/4-inch phone type OUTPUT B jack: 1/4-inch phone type STOP/UNDO jack: 1/4-inch TRS phone type DC IN jack
- Power Supply
- Alkaline battery (9 V, 6LR61) AC adaptor (PSA series: sold separately)
- Current Draw
- 95 mA
- Expected battery life under continuous use (These figures will vary depending on the actual conditions of use.)
- Alkaline: Approx. 3 hours
- Accessories
- Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information") Alkaline battery (9 V, 6LR61)
- Options (sold separately)
- AC adaptor: PSA series Footswitch: FS-5U, FS-6, FS-7
- Width
- 73 mm 2-7/8 inches
- Depth
- 129 mm 5-1/8 inches
- Height
- 59 mm 2-3/8 inches
- Weight
- 430 g 1 lb
