Instrument returns
New and used instrument purchases include a seven-day return privilege. Consignment sales are final unless the instrument has a serious malfunction. Read our instrument return policy or call 215-946-9295 for assistance.
Manufacturer product photography.
BOSS · Effects & Pedals

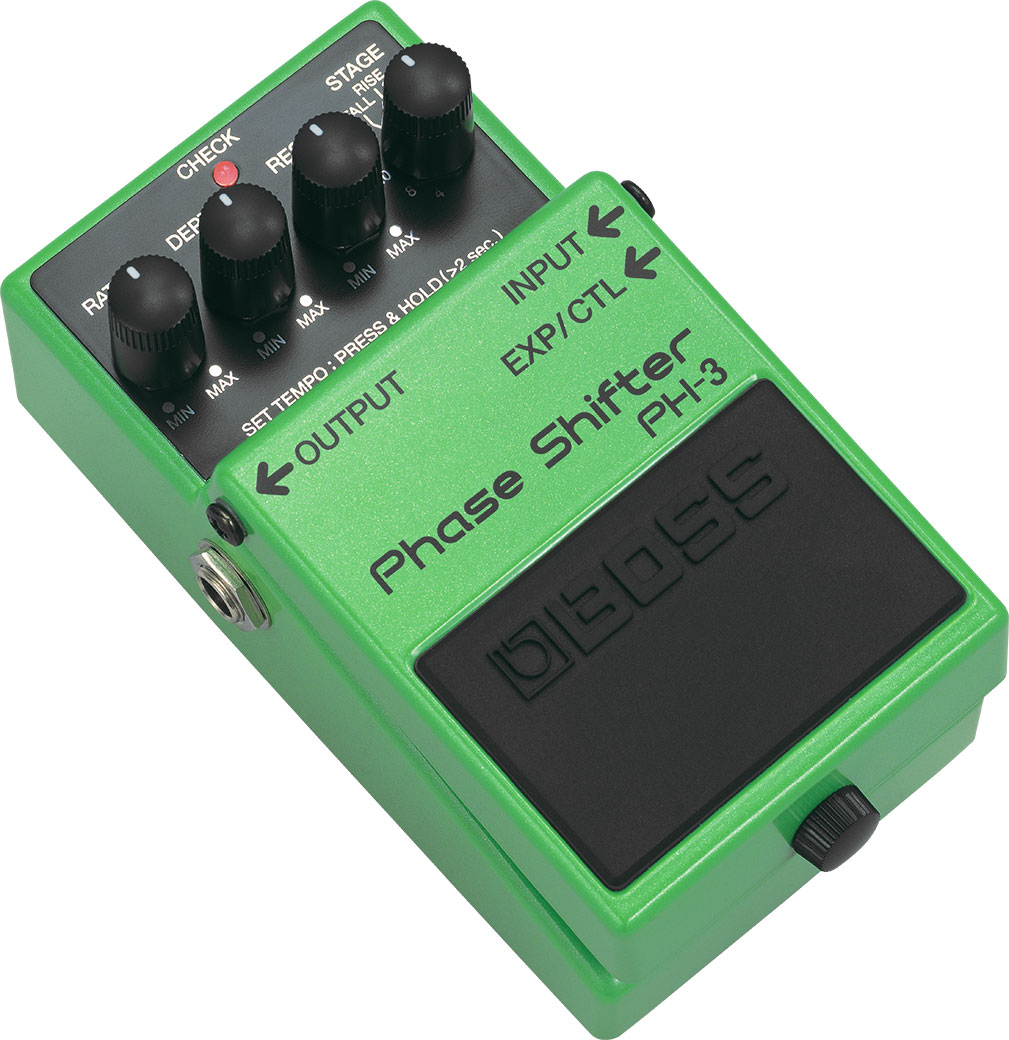

BOSS PH-3 Phase Shifter
PH-3
Explore multiple phaser modes, including classic stage settings and Rise, Fall, and Step effects. Rate, Depth, and Resonance controls shape the movement; tap tempo and optional expression control offer additional performance options.
Product details
- Brand
- BOSS
- Model
- PH-3
- Condition
- New
- Nominal Input Level
- -20 dBu
- Input Impedance
- 1 M ohm
- Nominal Output Level
- -20 dBu
- Output Impedance
- 1 k ohm
- Recommended Load Impedance
- 10 k ohms or greater
- Bypass
- Buffered bypass
- Controls
- STAGE switch RES(Resonance) knob DEPTH knob RATE knob Pedal switch
- Indicator
- CHECK indicator (Used for indication of check battery)
- Connectors
- INPUT jack: 1/4-inch phone type OUTPUT jack: 1/4-inch phone type EXP/CTL jack: 1/4-inch stereo phone type DC IN jack
- Power Supply
- Alkaline battery (9 V, 6LR61) AC adaptor (PSA series: sold separately)
- Current Draw
- 50 mA
- Expected battery life under continuous use
- Alkaline: Approx. 6 hours *These figures will vary depending on the actual conditions of use.
- Accessories
- Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information") Alkaline battery (9 V, 6LR61)
- Options (sold separately)
- AC adaptor: PSA series Expression pedal: EV-30/FV-500L/FV-500H, Roland EV-5 Footswitch(momentary-type): FS-5U/FS-6/FS-7
- Width
- 73 mm 2-7/8 inches
- Depth
- 129 mm 5-1/8 inches
- Height
- 59 mm 2-3/8 inches
- Weight (including battery)
- 415 g 15 oz
